Red
Channel Noise Reduction Comparison
|
|
|
This 5 megapixel image
was shot with a Nikon Coolpix 5000.
The red squares indicate the 100% crops below
to show the effect of different methods to reduce
"Red Channel Noise" or "Color Noise".
The "Original" crops are compared with
my new noise removal method and three other automated
Adobe Photoshop actions developed by other people
(named "Other 1", "Other 2",
and "Other 3").
|
|
parison |
|

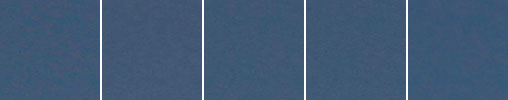

Original
|
123di
|
Other 1
|
Other 2
|
Other 3
|
|
|

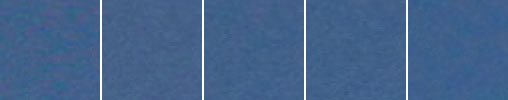

Above are 100% crops. Differences
are more visible at 200% crops below or by looking at
the red channel crops. A slight level adjustment has
been applied to the 200% RGB crop to bring out the red
waves in the blue sky.
|
|
|
How much noise you see depends
also on the quality of your monitor, its dynamic range
and how well it is calibrated. So looking in the "Red
Channel Only" examples below might be easier.
|
|

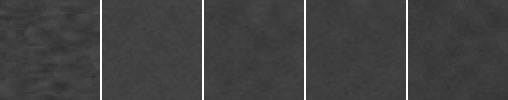

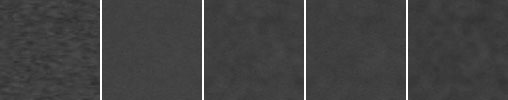

Sky Crop
- Red Channel Only - 100% and 200%
|
|
Original
|
123di
|
Other 1
|
Other 2
|
Other 3
|
|
|
|
Red
Channel Histogram Standard Deviation
|
|
|
The red channel is very noisy
as is reflected by a red channel histogram standard
deviation of 4.71 in this blue sky crop. My method creates
a clean blue sky with a standard deviation of only 1.71,
which is about the same as what you would measure in
the blue sky of a typical Canon EOS D60 picture, which
is of course not the same as saying the image quality
is now the same. The other methods reduce the standard
deviation as well, but create a "wavy" pattern
in the red channel which will be barely visible at 100%
on a monitor but will often be clearly visible in silver-halide
enlargements.
|
|
|
|

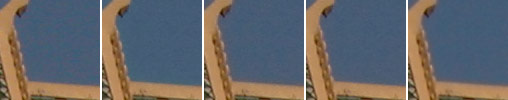

Original
|
123di
|
Other 1
|
Other 2
|
Other 3
|
|
|
My method leaves clean crisp
edges, actually even a bit cleaner than the original
and this before applying any sharpening. Other 2 does
a good job as well, but Other 1 and Other 3 blur the
edges significantly.
|
|

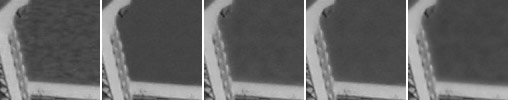

Edges Crop
- Red Channel Only
|
|
Original
|
123di
|
Other 1
|
Other 2
|
Other 3
|
|
|
The above mentioned differences
are again more visible in the red channel.
|
|
|
|
|

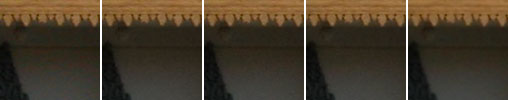

Original
|
123di
|
Other 1
|
Other 2
|
Other 3
|
|
|
The noise is also reduced in
the shadow areas by all methods. Differences between
methods are less obvious than in the blue sky crops
and again more visible in the red channel.
|
|
|

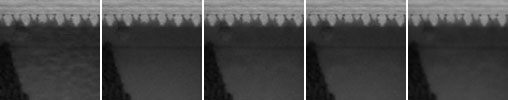

Shadow Crop
- Red Channel Only
|
|
Original
|
123di
|
Other 1
|
Other 2
|
Other 3
|
|
|
My method creates again the smoothest
shadows, followed by Other 2, but notice the fuzzy edges
of the yellow rooftop in the Other 3 method.
|
|
So how does my method work ? That
is featured in my new e-book: |
|
